Hat Patch Size Guide: Recommended Patch Sizing for Trucker Hats

Getting your patch size right is the single biggest factor in whether a custom hat looks sharp or looks off. Too big and the artwork crowds the seams and curls at the edges. Too small and the design gets lost on the panel. This guide covers the recommended patch sizing for trucker hats, the maximum dimensions to design within, how placement changes the math, and the small adjustments that come with different hat styles.

The quick answer: recommended trucker hat patch size

For a standard, centered patch on a trucker hat, design within these maximum dimensions:

• 2.35" tall
• 3.5" wide

The key phrase is whichever comes first. These are ceilings, not targets you have to hit. If your artwork is wide and short, you will reach the 3.5" width limit before you ever hit the height limit. If it is tall and narrow, the 2.35" height becomes the constraint. Design to whichever edge you reach first and you will stay inside the safe zone every time.

On a trucker hat, height is usually the tighter of the two limits. The foam front panel has a defined printable area, and the curve of the crown plus the seams top and bottom eat into vertical space faster than horizontal space. That is why 2.35" tall is the number that most often stops you first.

Why these maximums matter

A patch is a flat object being applied to a slightly curved, structured panel. When a patch gets too large relative to that panel, the edges reach the seams, where the foam changes shape and the stitching sits proud. A patch that runs into a seam will not lie flat, and over time the corners lift. Oversized patches also push artwork into the curve of the crown, which distorts how the design reads when the hat is worn versus how it looked flat on your screen.

Staying inside 2.35" x 3.5" keeps the whole patch on the flat, stable center of the panel, with a clean margin of foam framing it. That margin is what makes a patch look intentional and professional rather than crammed on.

Off-center and smaller patches

Not every patch belongs dead-center. A left-chest-style placement, a small logo tucked toward one side, or a minimalist mark can look fantastic when it is deliberately offset from the seam. When you move off-center, the sizing rule changes: keep the largest single dimension at 2.3" maximum, whether that is the width, the height, or the diameter of a round patch.

The reason is simple. When a patch shifts away from center, it moves closer to a seam on one side. A smaller footprint keeps the artwork on flat foam and preserves visual balance, so the offset reads as a design choice rather than a mistake. The same 2.3" guideline is a good default any time you want a smaller, understated patch, even if it is centered — smaller patches keep fine details crisp and are more forgiving across different hat colors and styles.

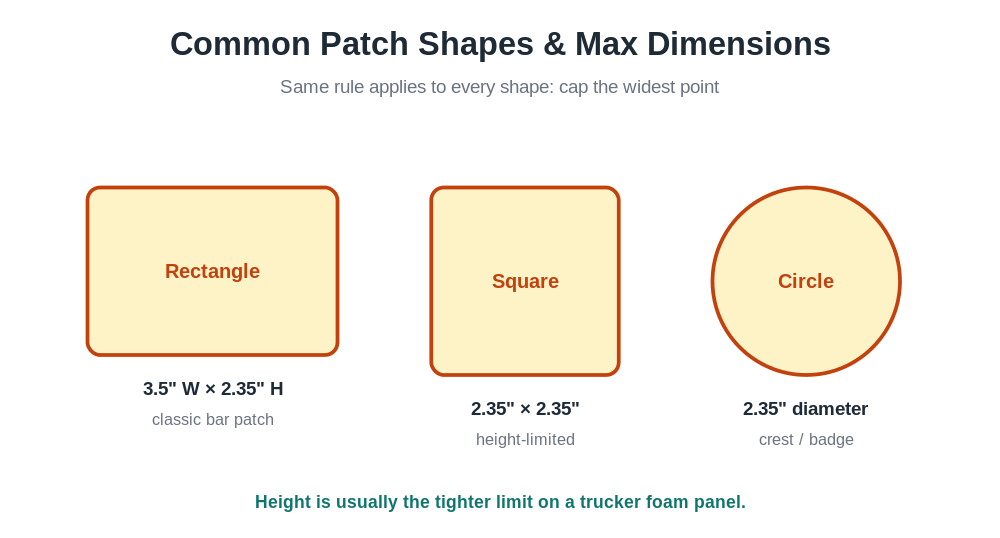

Patch shape changes the numbers slightly

The maximums apply to the widest point of your artwork, no matter the shape:

A rectangular or classic "bar" patch takes full advantage of the space at up to 3.5" wide by 2.35" tall — the most common trucker patch shape because it mirrors the panel. A square patch is limited by height, so it maxes out around 2.35" x 2.35". A circle or crest-style badge should stay within about a 2.35" diameter when centered. Across every shape, the principle is the same: measure the widest point of your design and keep it under the applicable maximum.

Sizing variations by hat style

Trucker hats are not all built identically, and small differences in construction affect how much decoration area you have to work with. The most common variation is panel count. A standard trucker is a 6-panel hat with two foam front panels meeting at a center seam. A 7-panel hat uses a center-panel configuration that can leave slightly more usable flat area on the front, which means a touch more room for decoration — and some structured foam styles give you a marginally taller printable zone before you reach the seams.

That said, the general guidelines should not be deviated from too much. The 2.35" x 3.5" maximum exists because it works reliably across the vast majority of trucker styles, colors, and foam thicknesses. Even when a particular hat could technically fit a slightly larger patch, designing to the standard maximums keeps your artwork consistent across a mixed run and protects you from edge-lift and seam interference on the tighter-fitting styles in the batch. Treat any extra room on a 7-panel or roomier style as bonus margin, not license to size up.

A simple pre-design checklist

• Centered patch? Cap it at 2.35" tall and 3.5" wide, whichever you hit first.
• Off-center or intentionally small? Cap the largest dimension at 2.3".
• Round patch? Treat the diameter as your largest dimension.
• Check the widest point of the actual artwork, not just the bounding box you imagined.
• Leave margin so no part of the patch touches a seam.
• Designing across multiple hat styles? Build to the standard maximums so every hat in the run matches.

Ready to make it real?

Once your artwork is sized correctly, the rest is the fun part. If you would like help turning your design into a finished patch and getting it onto the right hat, get in touch or start your custom order — we are happy to sanity-check your dimensions before anything goes into production.

Sizing guidelines here reflect general best practices for standard trucker hats. Exact printable area can vary slightly by manufacturer and specific hat model.
